Velonix NACS EV Charging Cable — Specification (16A–80A | 5 m / OEM Length)
1) Product Overview

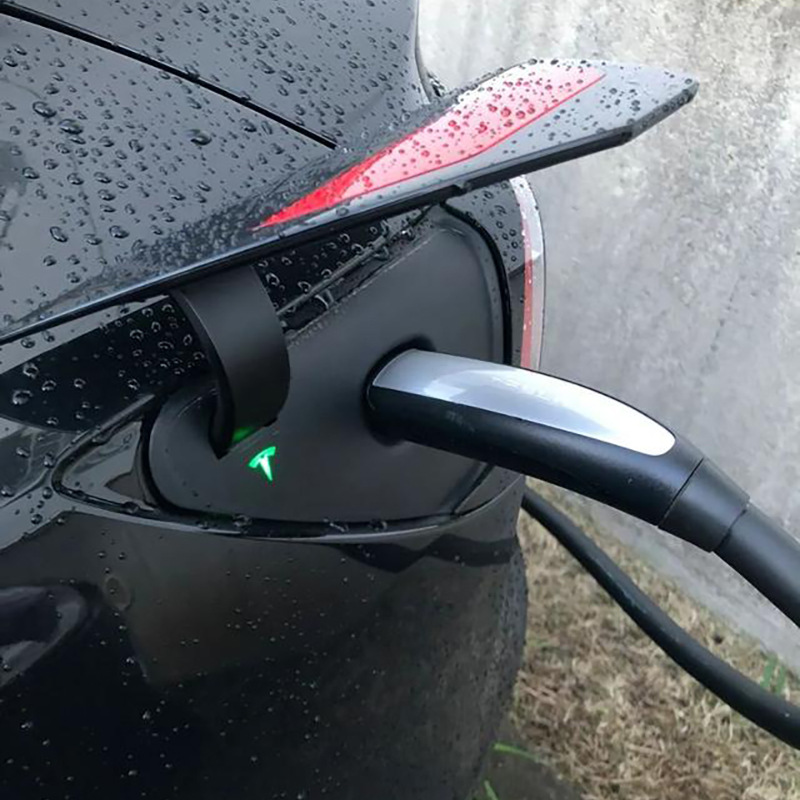

The Velonix NACS charging cable is designed for AC charging applications using the NACS (North American Charging Standard) connector. It supports a wide current range 16A to 80A and can be supplied in standard 5 meters or OEM/custom lengths for EVSE manufacturers and distributors.
2) Electrical Specifications
Connector Standard (Vehicle Side): NACS
Charging Type: AC charging cable / EVSE tethered cable
Rated Current: 16A–80A (Adjustable by EVSE setting)
Rated Voltage: 110–240V AC (single-phase typical)
Frequency: 50/60 Hz
Conductor Material: High-purity copper (OEM optional)
Signal Lines: CP / PP integrated (per EV charging requirements)
3) Cable & Mechanical
Standard Cable Length: 5 m
OEM Length Options: 3 m / 7 m / 10 m / 15 m (or customized)
Cable Jacket: TPU / TPE (OEM optional)
Cable Color: Black (custom colors optional)
Bending Performance: Designed for repeated flexing and outdoor handling
4) Environmental & Protection
Operating Temperature: -30°C to +50°C (typical; OEM configurable)
Water/Dust Resistance: Suitable for outdoor use (final rating depends on connector + EVSE design)
UV Resistance: Outdoor-grade jacket option available
Flame Retardant: Available (UL-rated jacket option for US market)
5) Compliance & Quality (OEM/ODM)
Standard Reference: NACS interface (application-dependent)
Production Testing: Continuity / insulation resistance / hi-pot (as required)
OEM Support: Logo marking, cable print, label design, packaging customization
6) Typical Applications
Home EVSE tethered cable (Level 1 / Level 2 AC charging)
Portable EV chargers (NACS output)
Commercial AC wallbox charging equipment
Optional Add-ons (Common OEM Requests)
Custom cable OD / conductor sizing for 80A continuous use
Enhanced cold-flex jacket for winter markets
Connector color ring / branding insert
Reinforced strain relief & anti-twist design
