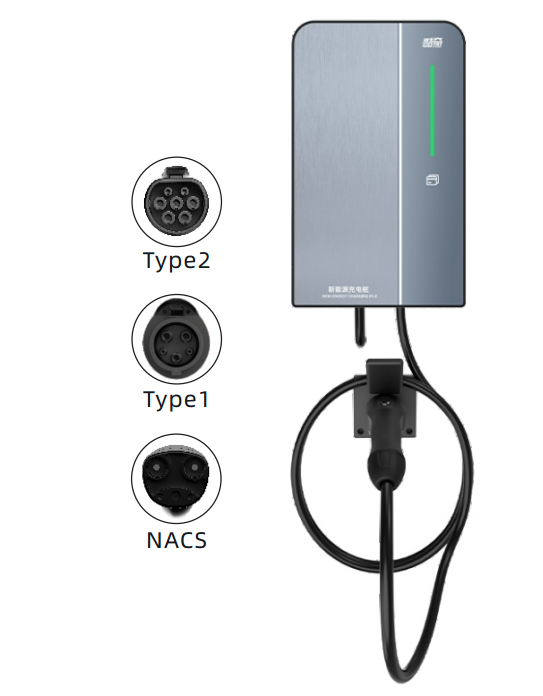

This is  AC EV Charger designed for both residential and shared commercial charging applications. It supports 7kW / 11kW / 22kW charging power with AC 220V / 380V input, making it suitable for common single-phase and three-phase power environments. The charger operates at 50Hz ± 5Hz and provides a 8A-32A current rating, ensuring stable and efficient daily charging for mainstream EVs.

For user operation and basic commercial management, it supports Plug & Play charging and RFID card swipe start/stop. It also supports 4G network connection for shared commercial use, enabling convenient deployment in public or semi-public locations. Status information is indicated via an LED indicator light, and scheduled charging is supported through an APP or the vehicle terminal.

The unit is designed for flexible installation, supporting both wall-mounted and column-mounted (pedestal) options. It uses natural air cooling for reliable operation and low maintenance. With an operating temperature range of -20°C to 50°C and operating altitude up to ≤ 2000m, it is suitable for diverse environments. Protection levels are IP54 for the control box and IP66 for the connector, offering strong resistance to dust and water exposure. Input cable length options include 3m / 5m / 10m.

Safety & Protection

The charger integrates comprehensive safety mechanisms, including:

• Over-temperature protection

• Leakage protection

• Overvoltage / Undervoltage protection

• Overcurrent protection

• Short-circuit protection

• Overload protection

• Dustproof and rainproof protection

• Lightning protection

• Flame-retardant design

• CP voltage abnormality protection

• Anti-theft support via connector lock

Applicable Scenarios

Suitable for:

• Residential communities and private residences

• Corporate factories and industrial parks

• Commercial offices and office buildings

• Urban complexes and public charging areas

• New energy vehicle 4S shops

• Workshop commissioning and testing sites

• Driving schools and other similar locations

Standard Compliance

• GB/T 20234.2-2015
